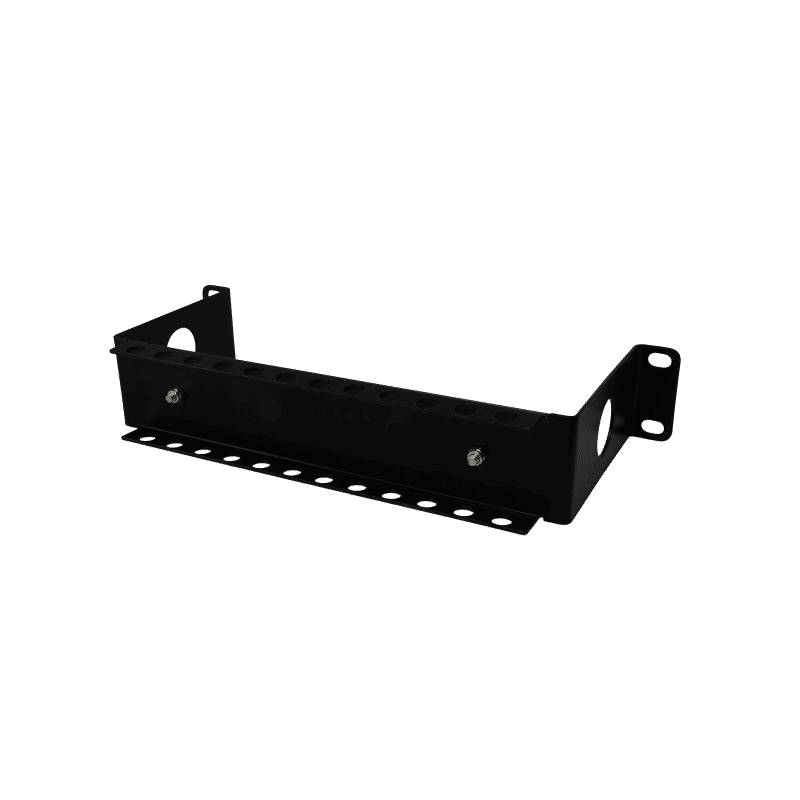

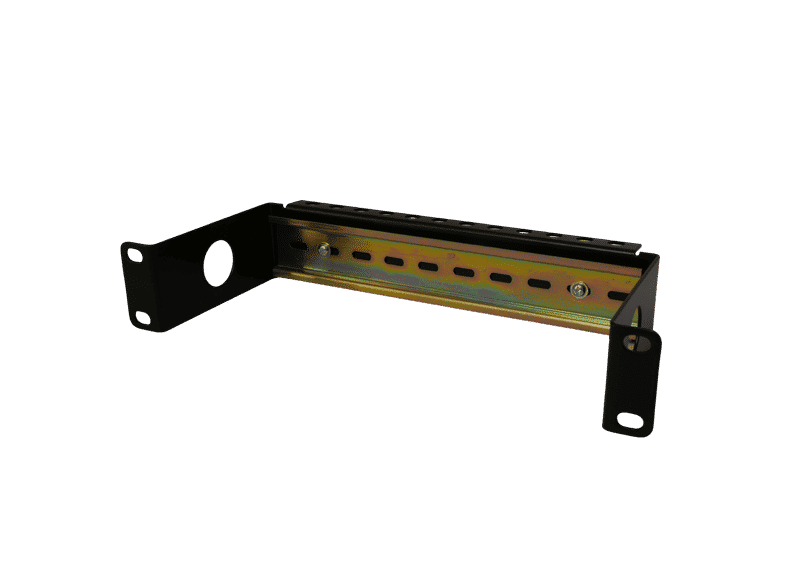

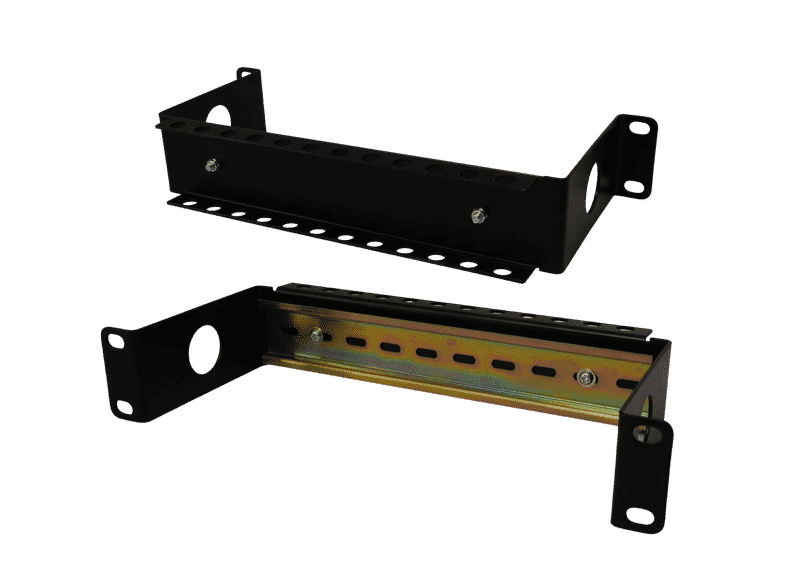

miniMEDIA 10” Rack Mount DIN Rail Panel

Product Code(s):FFDIN/10

This rack mount 1U panel is recessed and designed for mounting DIN rail connectors. The TS35 rail is recessed by 90 mm and the frame is equipped with cable tie and access features to accommodate most equipment and connectors. NB Not suitable for use with MB1U/10 10’’ wall/desk mountable bracket

Key Features

  • 1U panel fitted with TS35 DIN rail
  • 90mm recess with cable access points at both sides
  • Supplied with convenient rear cable tie facilities
  • Provided with M6 mounting kit of 4 caged nuts, bolts and washers
  • Zinc coated steel unpainted Din rail ensures optimal earthing

Quick Specifications

Dimensions

270x120x55mm (in primary packaging)

Weight

412g (including primary packaging)

Colour

Black

Technical Data Sheet

Complete specifications, installation guide, and compliance certificate

Need B2B Pricing?

Our sales team specializes in bulk orders and can provide competitive pricing for wholesalers and distributors.

+44 (0)20 8946 9494sales@tuk.co.uk

Distributors

Farnell

Product Description

This rack mount 1U panel is recessed and designed for mounting DIN rail connectors. The TS35 rail is recessed by 90 mm and the frame is equipped with cable tie and access features to accommodate most equipment and connectors.



NB Not suitable for use with MB1U/10 10’’ wall/desk mountable bracket
