IP Rated Category 6A Panel Mountable Socket

Product Code(s):WSGJK

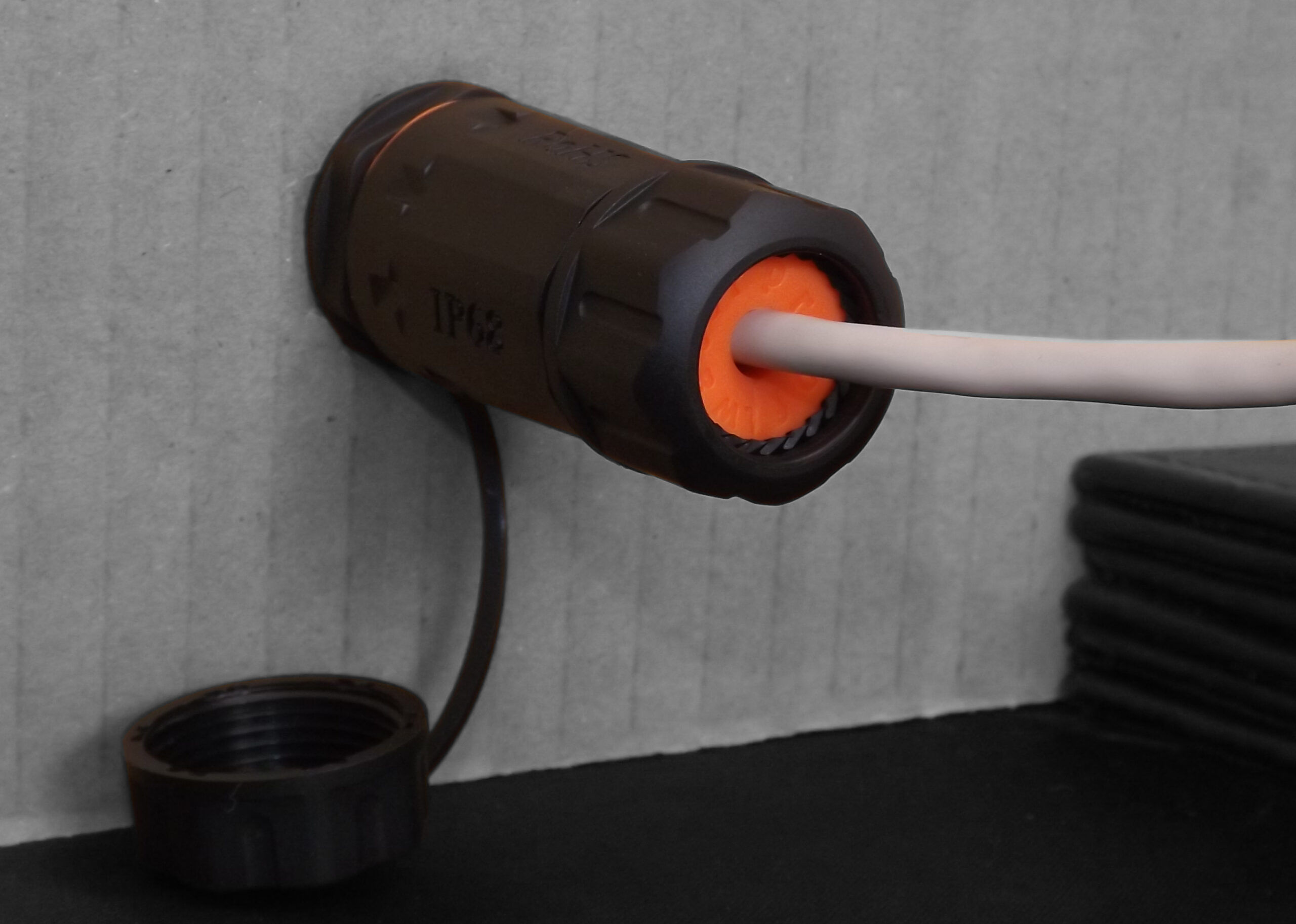

An IP68 rated Category 6A socket that is designed to be able to be mounted into panel cut-outs without the socket spinning in the panel when tightening the seal. This is ideal for use in environments where robustness is needed like industrial or outdoor environments.

Key Features

  • Able to operate in temperatures ranging from 0° up to 70°
  • Compatible with Category 5e, Category 6 and Category 6A connections
  • Fully compliant with Category 6A standards
  • Designed to withstand a minimum 250 inserts
  • Suitable for cables with OD 5.2 – 8.2mm
  • IP68 rated on the socket side (i.e. dust tight and can be immersed for up to 30 minutes in water up to 1m depth).
  • Screw in plug adaptor allows for the use of conventional patch leads and also reduces the risk of accidental disconnections
  • No unnecessary twisting of the connection, when used with a suitable cut-out.

Quick Specifications

Net weight (incl. packaging):

56g

Dimensions (incl. packaging):

110 x 55 x 50 mm

Colour:

Black housing, orange washer and silver socket

Technical Data Sheet

Complete specifications, installation guide, and compliance certificate

Need B2B Pricing?

Our sales team specializes in bulk orders and can provide competitive pricing for wholesalers and distributors.

+44 (0)20 8946 9494sales@tuk.co.uk

Distributors

Farnell
CPC

Product Description

An IP68 rated Category 6A socket that is designed to be able to be mounted into panel cut-outs without the socket spinning in the panel when tightening the seal. This is ideal for use in environments where robustness is needed like industrial or outdoor environments.
