Category 6A Tool-less Shielded Keystone Socket with cable clamp

Product Code(s):SGKSclje

Our die-cast fully shielded Category 6A socket offers a toolless keystone solution for almost any Category 5e, Category 6 or Category 6A STP requirement. Cable retention is achieved effortlessly with the innovative cable clamp feature.

Key Features

  • High performance compliant with ANSI/TIA 568 C.2 standard – comfortably achieves component link level
  • Compliant with IEC60512-99-001 – suitable for use with IEEE 802.3at (PoE+) applications
  • 3rd Party (Delta) verified
  • Ease of installation
  • o Quick and easy tool-less lever “butterfly” style termination

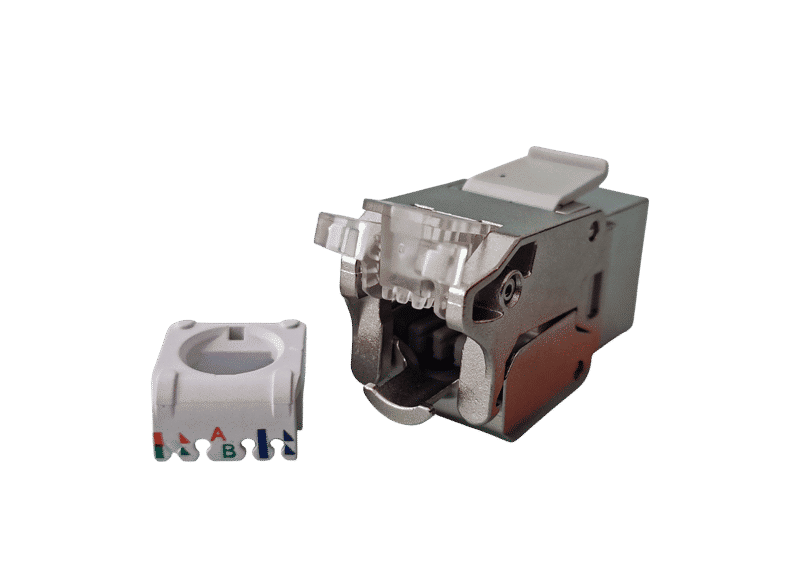

  • o Core carrier easily placed in the correct orientation and retained
  • o Insulator design around the IDC contacts prevents potential shorting against the casing.

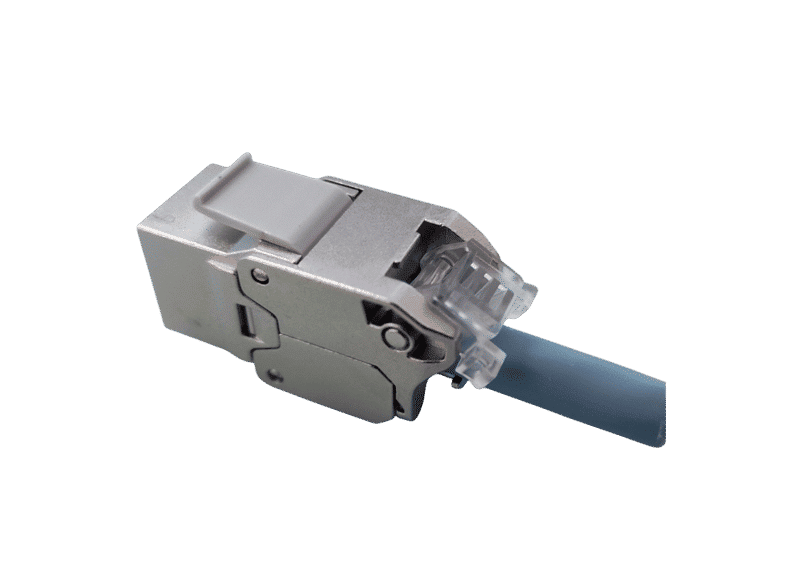

  • Innovative cable clamp ensures cable retention with the minimum of time and fuss, without impacting performance
  • Fully shielded die-cast body is robust as well as offering outstanding performance in eliminating alien cross-talk
  • Compact housing suitable for use in high density installations e.g. 0.5U panels
  • Standard format keystone fits a wide range of panels, adaptors and faceplates
  • Suitable for 23-26 AWG stranded and solid wire. (0.40 – 0.57mm)
  • Built-in dustcover
  • Panel mount, D UNIVERSAL and DIN rail mountable versions also available

Quick Specifications

Weight

26g approx. (including primary packaging)

Dimensions

100 x 602 x 25mm approx. (in primary packaging)

Colour

Silver

Technical Data Sheet

Complete specifications, installation guide, and compliance certificate

Need B2B Pricing?

Our sales team specializes in bulk orders and can provide competitive pricing for wholesalers and distributors.

+44 (0)20 8946 9494sales@tuk.co.uk

Distributors

CPC
Bownet

Product Description

Our die-cast fully shielded Category 6A socket offers a toolless keystone solution for almost any Category 5e, Category 6 or Category 6A STP requirement. Cable retention is achieved effortlessly with the innovative cable clamp feature.
